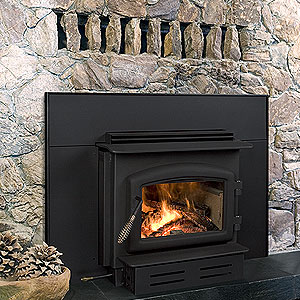

Chalet 1800 Woodburning Insert

Chalet-1800 Insert

BRING IN THE NEW

High Efficiency from your old wood fireplace.

Archgard's design team has developed a large, high efficiency wood insert that will convert your old, drafty, masonry built wood fireplace into a useful source of heat, using less wood, and offering improved outdoor air quality, due to lower emissions.


The unit was designed to the strict US EPA and Washington State requirements for emissions. The Chalet 1800 Wood Insert offers a large 2.5 cubic foot firebox that easily receives 18" firewood in both directions, the standard two speed 150 cfm fan helps to circulate room air past the super heated firebox to help heat a home up to 2000 sq feet.


The Chalet 1800 Insert offers a choice of two decorative surrounds to finish off most fireplace openings and your choice of black, gold, or brushed nickel doors. The firebox is brick lined, and lightweight ceramic baffles are positioned above the floor stainless-steel secondary combustion tubes. As a homeowner you will appreciate the single air control handle that regulates burn times to allow an overnight burn, and the glass will stay clean, longer due to our excellent air wash system.

DOORS
Brushed Nickel-Plated Door		24K Gold-Plated Door

SPECIFICATIONS

Minimum Fireplace Opening Size Width & Depth & Height 25" x 16" x 22" (635mm x 406mm x 559mm) Epa Emissions 3.6 grams/hr Epa Output Rating 10,700 - 35,500 btu/hr 3,134 - 10,397 kw/hr Seasoned Cordwood Rating 78,000 BTU (22,860 kw) Approximate Heating Area 1000 - 2000 sq feet 92.8 - 185.6 sq metres Duration of Low Fire 8 - 12 hours Insert Weight with Door and Surround 375 lbs (170 kg) Surround Panels Standard (w x h) 40" (1016mm) x 28" (711mm) Large (w x h) 46" (1168mm) x 32" (813mm) Tested and approved to Canadian and American standards, UL 1482-96/ULC S628-00 Lifetime warranty on specific items please ask your dealer for details Consult owners manual for more information

Clearances to Combustibles Side Wall to Insert A = 16.25"/413mm   Top of Insert to Bottom of Mantle B = 26"/660mm 28"/711mm 32"/813mm F = 6"/152mm 8"/203mm 12"/305mm   Side of Insert to Mantle Leg C = 8"/200mm   Hearth Extention Front D = Canada = 18"/450mm USA = 16"/400mm   Hearth Extension Side E = Canada = 8"/200mm USA = 8"/200mm
