Chalet 1800 - Freestanding Woodstoves
A fireplace that stands on its own \'Merit\'... The ever popular Chalet 1800 Freestanding Woodstove is designed to meet the heating needs of most North American homes. An efficient wood consumption rate results in lower emissions and improved outdoor air
Base price 1,059.04 USD
Base price with tax
Salesprice with discount
Sales price 1,059.04 USD
You Save
Price / kg: 1,059.04 USD
Description

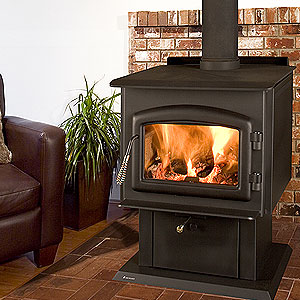

Chalet-1800 Freestanding
STANDS ON ITS OWN MERIT
The ever popular Chalet 1800 Freestanding Woodstove is designed to meet the heating needs of most North American homes. An efficient wood consumption rate results in lower emissions and improved outdoor air quality.
The unit was designed to the strict US EPA and Washington State requirements for emissions. The Chalet 1800 offers a large 2.5 cubic foot firebox that can easily accommodate 18" of firewood in both directions. When equipped with the optional two-speed 150 CFM fan, this unit circulates air past the super heated firebox so effectively that it can heat a home up to 2000 square feet.
This unit comes standard with a brick lined firebox, lightweight ceramic baffles positioned above four stainless steel secondary combustion tubes, a simple single air control handle and a highly effective air wash system that keeps the glass cleaner for longer. Standing on a robust pedestal base or four decorative cast iron legs available in black, 24k gold plated, and brushed nickel. The Chalet 1800 makes an eye-catching center piece for any room in your home.
|
|
|
![\"\"](/\"http://www.archgard.com/images/fireplaces/cha_stand_1800_main.jpg\")
DOORS
|
![\"\"](/\"http://www.archgard.com/images/fireplaces/cha_stand_1800_nickel.jpg\")
Brushed Nickel-Plated Door
|
![\"\"](/\"http://www.archgard.com/images/line.gif\") |
![\"\"](/\"http://www.archgard.com/images/fireplaces/cha_stand_1800_gold.jpg\")
24K Gold-Plated Door
|
|
![\"\"](/\"http://www.archgard.com/images/fireplaces/cha_stand_1800_ironlegs.jpg\")
Cast Iron Legs
|
SPECIFICATIONS
Specifications
|
Width & Depth
|
24" x 25.56"
(610mm x 649mm)
|
Height with Pedestal
|
30.375" (771mm)
|
Height with Cast Legs
|
31.375" (797mm)
|
EPA Emissions
|
3.6 grams/hr
|
EPA Output Rating
|
10,700 - 35,000 btu/hr
3,134 - 10,397 kw/hr
|
Seasoned Cordwood Rating
|
78,000 BTU (22,860 kw)
|
Approximate Heating Area
|
1000 - 2000 sq. feet
92.8 - 185.6 sq. metres
|
Stove Body Weight with Pedestal and Door
|
395 lb (180 kg)
|
Duration of Low Fire
|
8 - 12 hours
|
|
Tested and approved to Canadian and American standards, UL 1482-96/ULC S627-00
|
|
Lifetime warranty on specific items please ask your dealer for details
|
|
Consult owners manual for more information
|
|
|
Clearances
|
* min. clearance from stove top to ceiling using double wall pipe 914mm/36"
|
* min. clearance from stove top to ceiling using single wall pipe 1.4m/55"
|
| |
SIDEWALL
|
HEATER
|
FLUE CENTRE LINE
|
Residential installation using single wall connector
|
Sidewall
Backwall
Corner
|
406mm/16"
406mm/16"
203mm/8"
|
711mm/28"
533mm/21"
508mm/20"
|
| |
Installation using listed double wall connector - mobile home
|
Sidewall
Backwall
Corner
|
406mm/16"
203mm/8"
280mm/11"
|
711mm/28"
311mm/12.25"
585mm/23"
|
| |
Installation using listed double wall connector - residential close clearance
|
Sidewall
Backwall
Corner
|
406mm/16"
203mm/8"
178mm/7"
|
711mm/28"
311mm/12.25"
483mm/19"
|
| |
Installation using listed double wall connector - alcove
|
Sidewall
Backwall
Corner
|
406mm/16"
203mm/8"
|
711mm/28"
311mm/12.25"
|
| |
Minimum alcove ceiling height: 1.73m/68"
|
|
![\"\"](/\"http://www.archgard.com/images/fireplaces/1800_stand_specs.jpg\")
