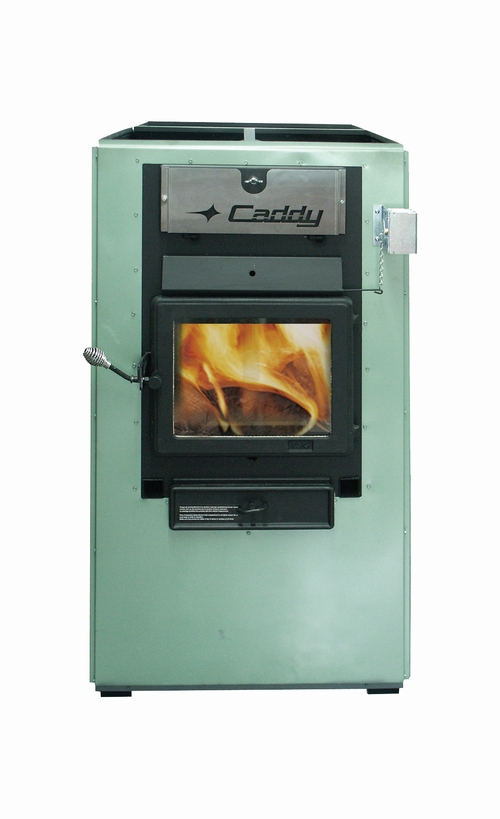

Caddy - E.P.A. wood or wood-electric combination furnace

Caddy - E.P.A. wood or wood-electric combination furnace. Maximum input capacity : 140.000 BTU (42 kW). Glass door with cast iron frame.
Caddy - E.P.A. wood or wood-electric combination furnace
Base price 2,397.64 USD
Base price with tax
Salesprice with discount
Sales price 2,397.64 USD
You Save
Price / COM_VIRTUEMART_UNIT_SYMBOL_:
Furnace
Furnace
Options
Description

\"\"

Features:



Model Number: PF01000



  • Maximum input capacity : 140.000 BTU (42 kW)
  • Furnace exterior dimensions : 26"W x 47"D x 48"H
  • Firebox dimensions : 17"W x 22,5"D x 16"H
  • Glass door with cast iron frame
  • Ash drawer
  • Tested by OMNI as per applicable standards (CSA/UL/ULC and/or others)

Options
  • Optional electric elements of 15 kW, 18 kW or 20 kW



Technical specs
Type of fuelWood
Maximum input capacity140,000 BTU
Maximum output capacity102,000 BTU
Average output capacity66,430 BTU
Blower1/3 HP 4 speed Direct drive, 1300 cfm
Loading capacityUp to 70 lbs (32 kg)
Efficiency73 %
ColorGreen
Exterior dimensions26"W x 47"D x 48"H
Flue spigot diameter6"
Recommended exhaust pipe diameter7"
Type of chimney2100°F (1150°C)
Recommended chimney diameter7"
Firebox dimensions17"W x 22,5"D x 16"H
Maximum log length22"
Door opening dimensions13,75"W x 10"H
Type of doorGlass with cast iron frame
Hot air plenum dimensions24,5"W x 28,25"D
Cold air plenum dimensions24,5"W x 15,75"D
Ash drawer dimensions12"W x 16"D x 3"H
Number of filters2
Filters dimensions12"W x 24"D x 1"H
Minimum clearances (Front)48"
Minimum clearances (Back)24" for servicing
Minimum clearances (Sides)24" for servicing
Minimum clearances (Ducts)6" for the first six feet and 1" thereafter
Recommended clearance (blower maintenance)24"
Weight560 lbs (254 kg)
WarrantyLimited lifetime warranty
Test standard - safetyCan CSA B366.1-M91, CSA B212-93, UL391 3e, Ed. rev. 1999
Test standard - emissionsE.P.A.
Electric element (optional)
Recommended element18 kW
Maximum output - Other optional elements15 kW, 20 kW, 25 kW
Element locationLeft
Recommended clearance (Maintenance)24"
